Capabilities
From code-compliant design and analysis to heavy fabrication and precision machining, all under one partnership.
Engineering Capabilities
Thermal Design
Heat exchanger thermal rating and sizing using HTRI software.
Mechanical Design
Pressure vessel and heat exchanger design using PV Elite with Code Cal.
Design compliance to ASME and other global codes.
Structural Steel & PEB Design
STAAD PRO, RAM & IDEA STATICA for Structural design.
TEKLA for 3D Model and Fabrication drawings.
Finite Element Analysis (FEA)
Stress and localized analysis using ANSYS / NozzlePRO.
Evaluation of nozzle loads, support structures, and external forces.
Code-Based Calculations
Use of MicroPROTOL for code compliance and detailed design.
Design documentation traceable to applicable international standards.
Seismic Analysis
Seismic evaluation of vessels and exchangers using FEA, per site-specific seismic requirements and applicable codes.
3D Modelling & Drafting
SOLIDWORKS for 3D equipment modeling.
AutoCAD for fabrication drawings and general arrangements.
Combined Manufacturing Capability
70,000 Sqm
Total Fabrication Facility
4.5 m
Maximum Equipment Diameter
1,500 mm
Maximum Drilling Capacity (Thickness)
150 mm
Maximum Shell Thickness
25 m
Maximum Equipment Length
35,000 Sqm
Covered shed including blasting and painting
- Over a decade of legacy in executing PDO, Oxy and OQ Projects
- Commendable HSE, quality, and on-time delivery performance
- Trained workforce to cater to the demand of Oil and Gas fabrication, including CS/LTCS/SS/DSS/SDSS/CRA/Alloy material fabrication
- Capable of delivering over 35,000-inch-diameter piping spools fabrication in a month

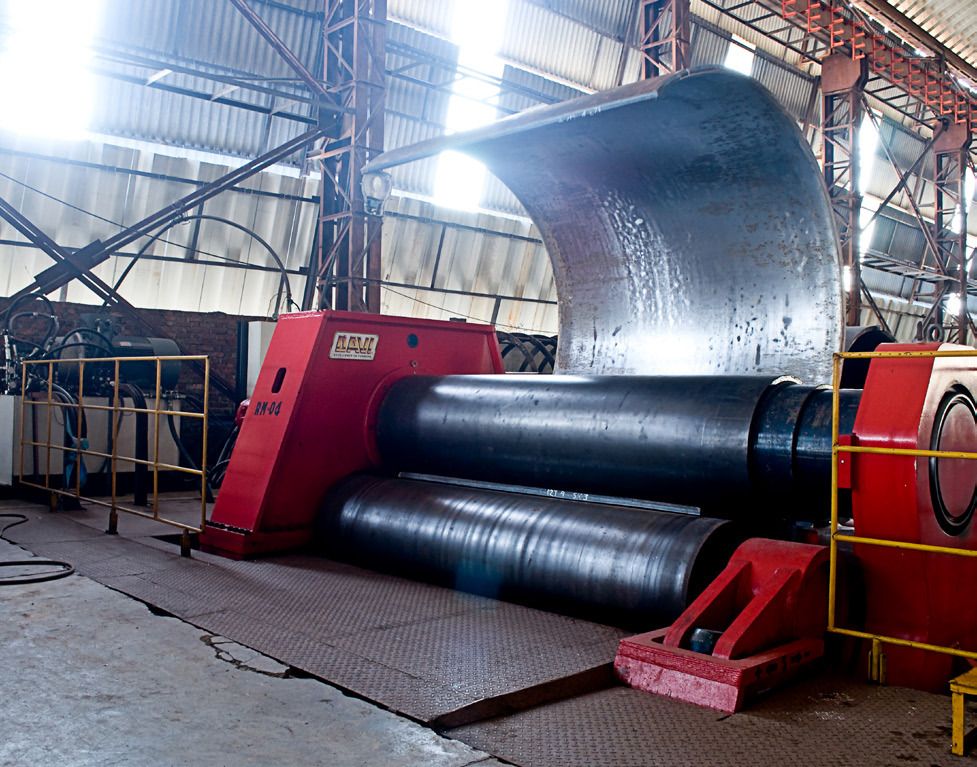

3 Roll, CNC Controlled. Maximum thickness: 140 mm (~5.50 in)

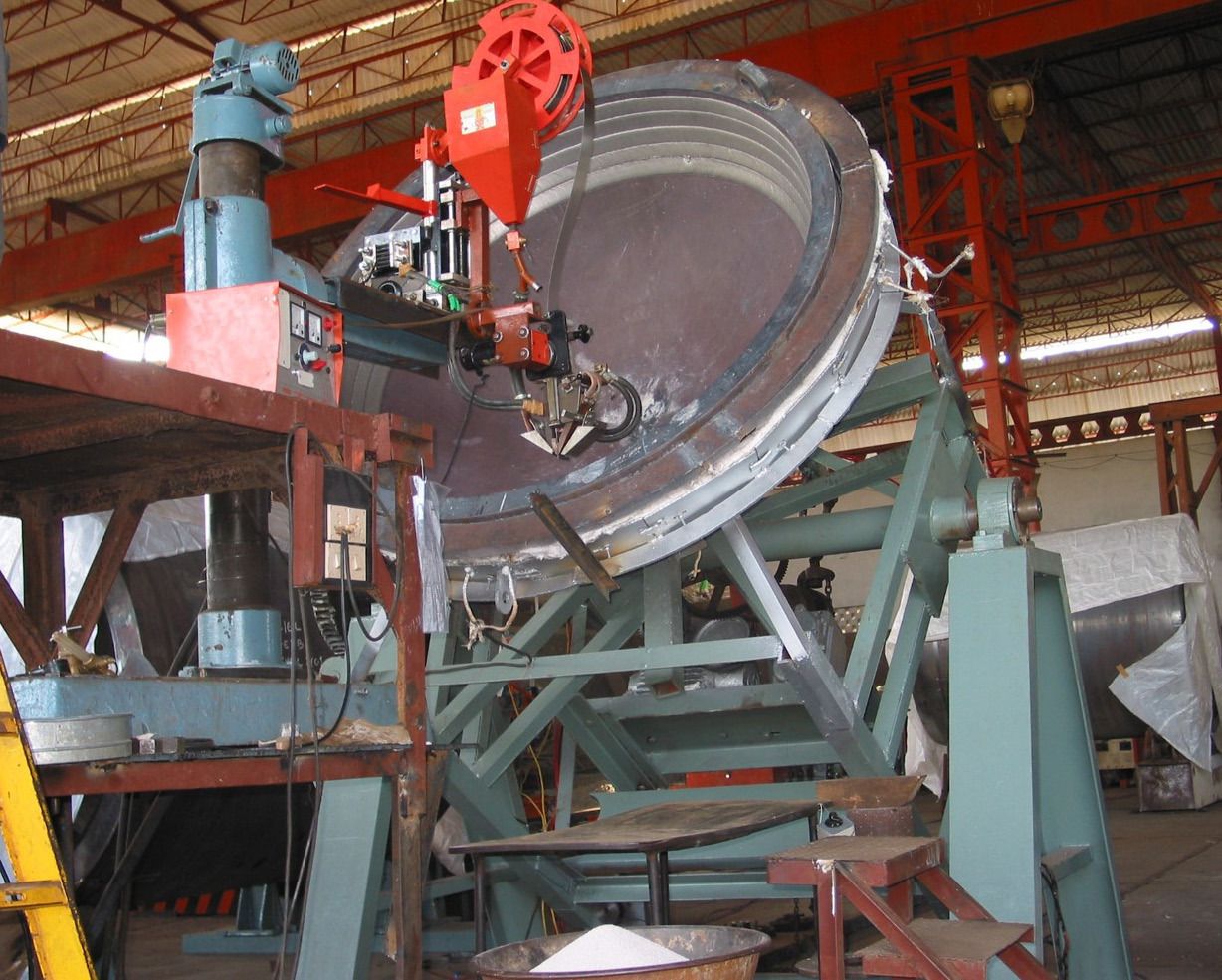

Strip Cladding on Dish-End. Maximum Strip size: 90mm (~3.50 in) - SASC/ESSC

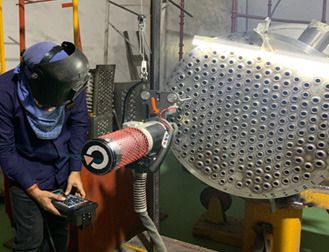

Automated and Manual Welding Stations

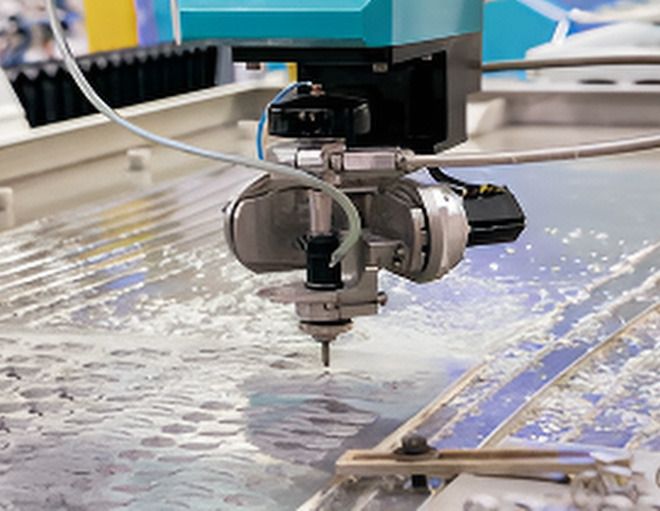

Waterjet Cutting up to 300 mm (~12 in)

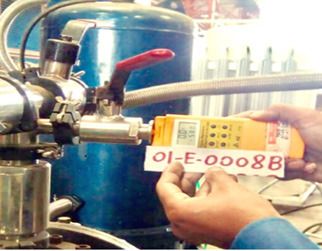

Vacuum Drying Machines

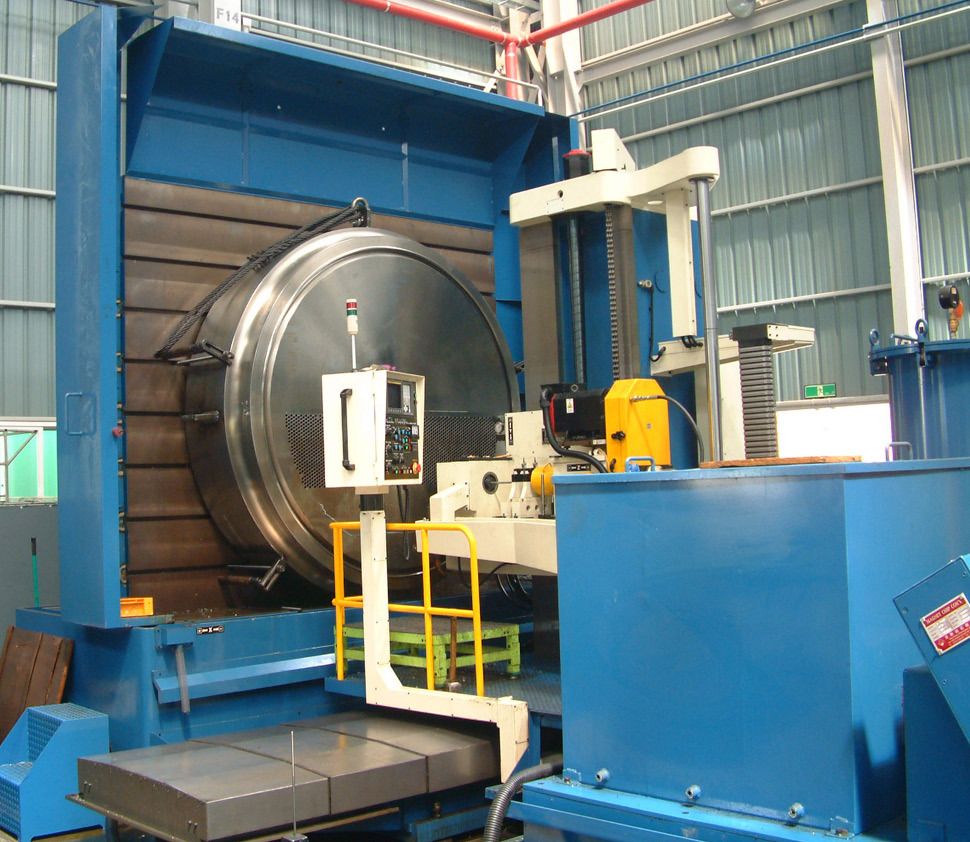

Gun Drilling Machine. 3000 mm x 3000 mm x Depth 1000 mm

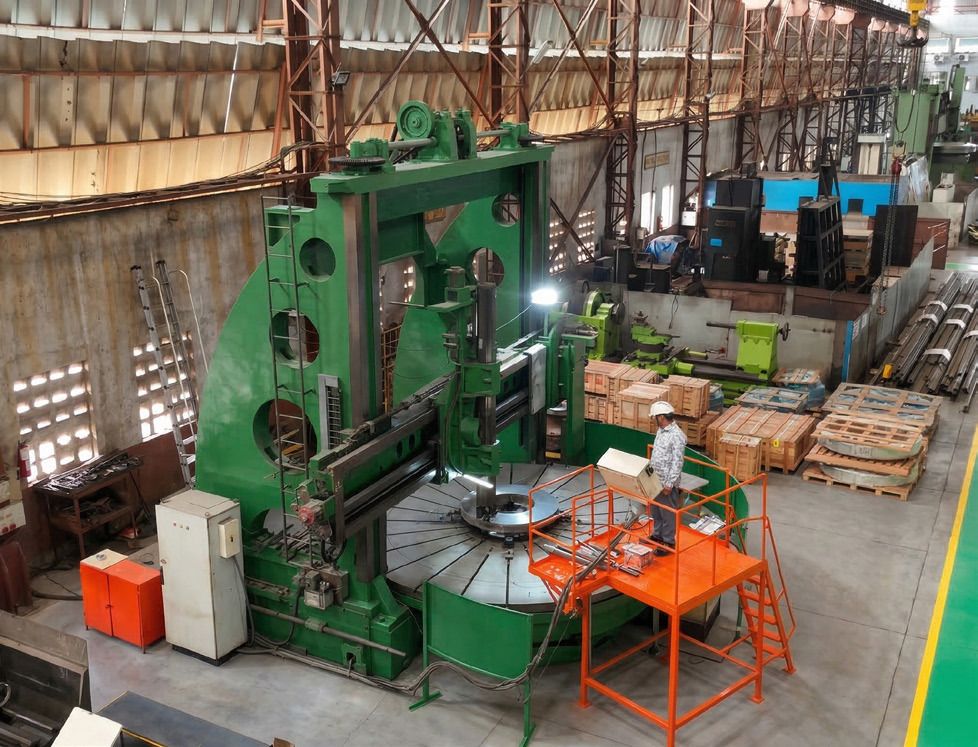

Vertical Turret Lathe. 4000 mm x 4500 mm x 3500 mm

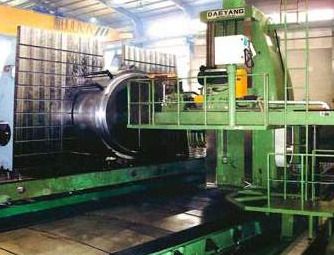

Horizontal Drilling Machines. 4500 mm x 2000 mm x Depth 1500 mm

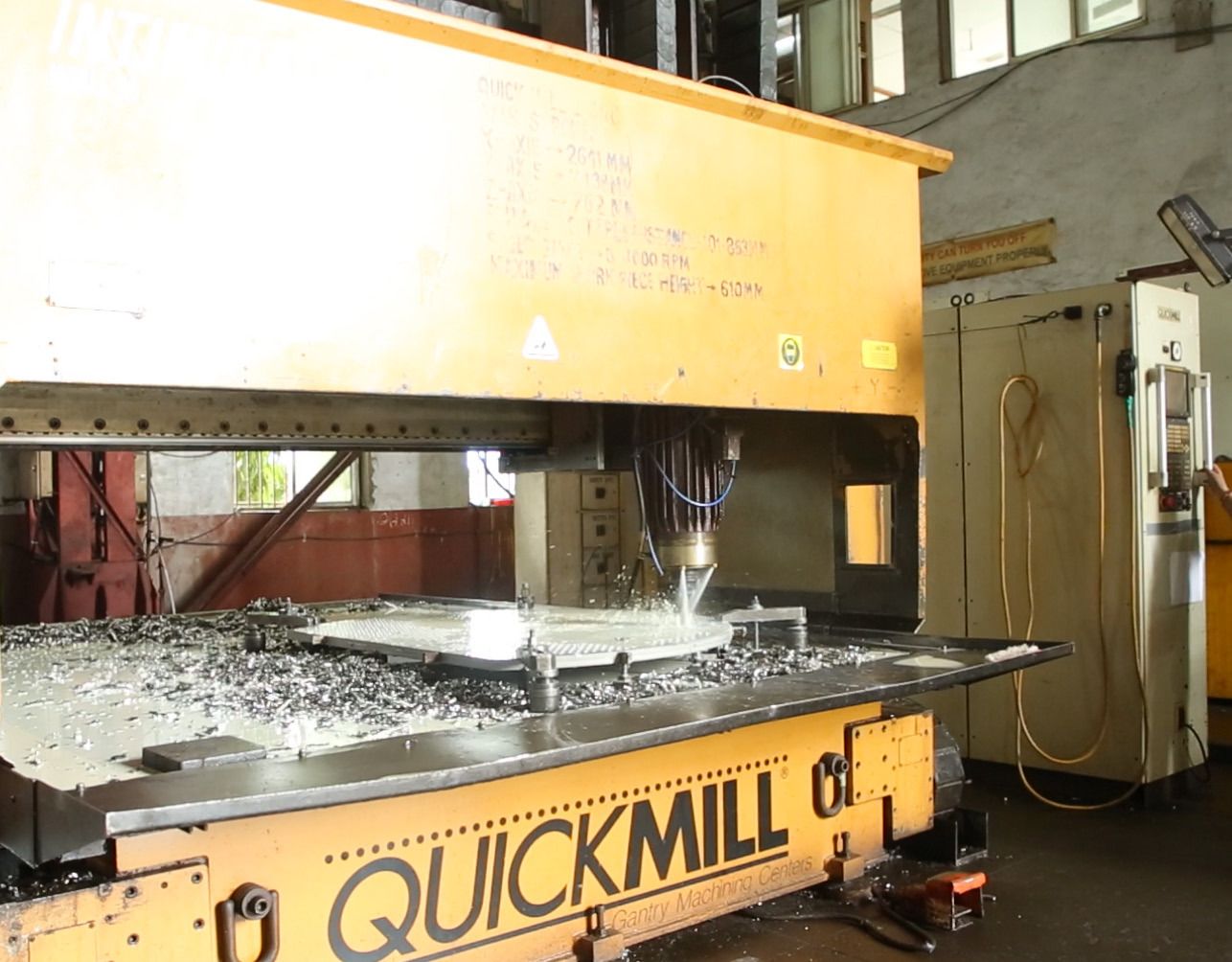

CNC Quick Mill Intimidator. 2440 mm x 2640 mm x Depth 760 mm

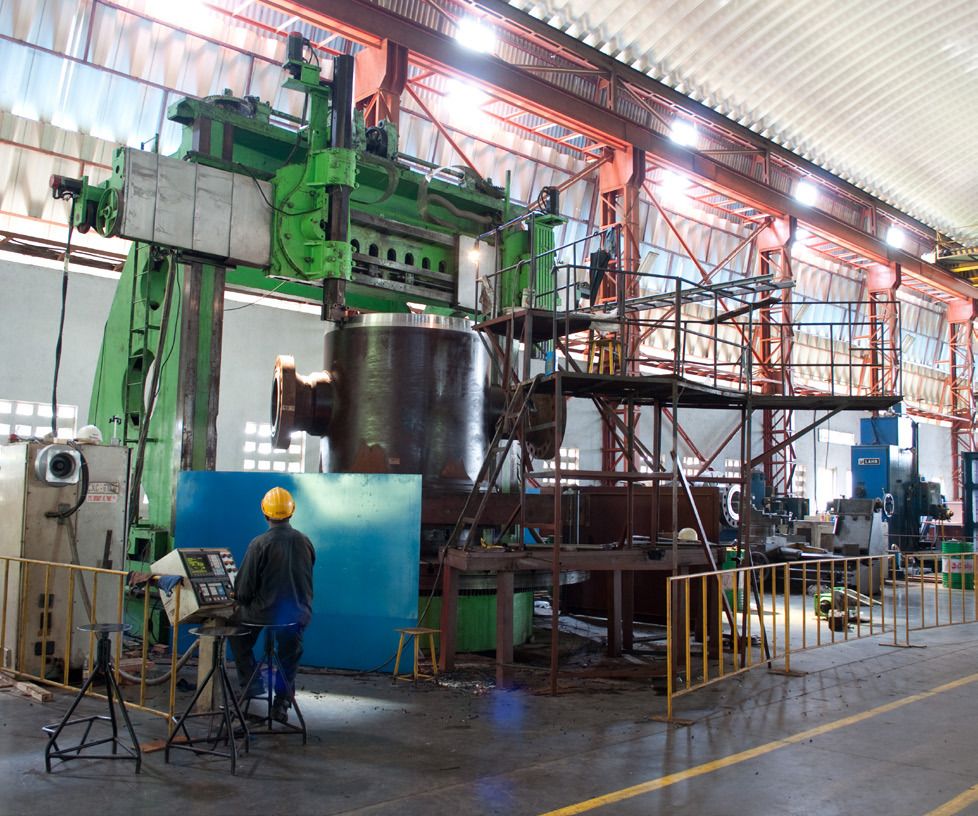

Titan Vertical Boring Machine. 3300 mm x cross rail 3200 mm

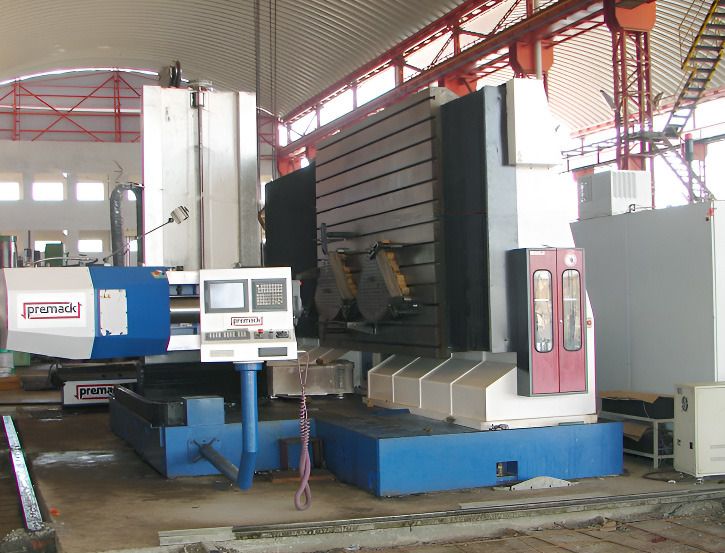

Horizontal Inclined Plate Drilling. 3200 mm x 2200 mm x (0 to 45 degrees)

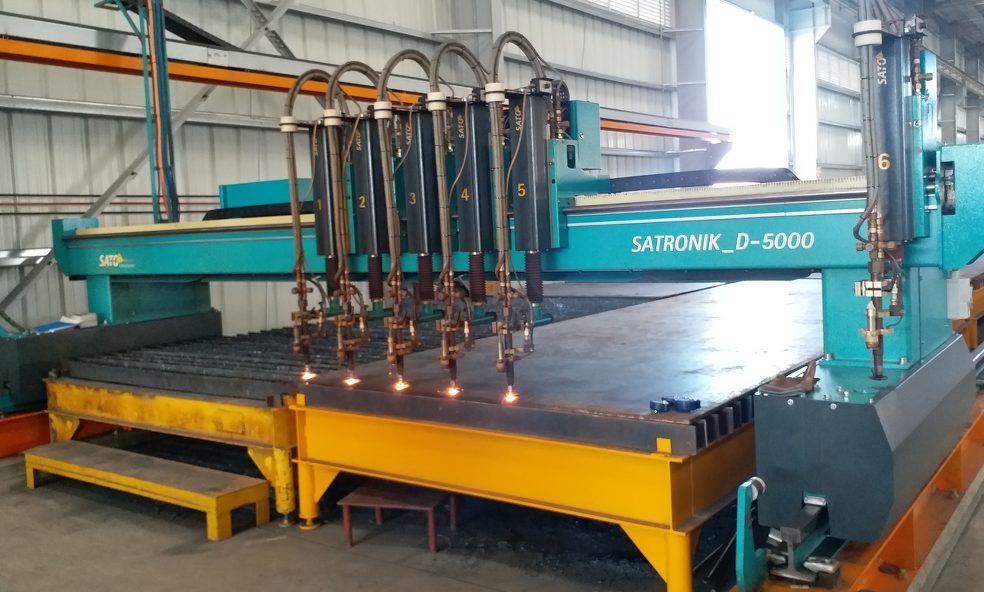

CNC Cut & Strip Machine 4.02M x 12M

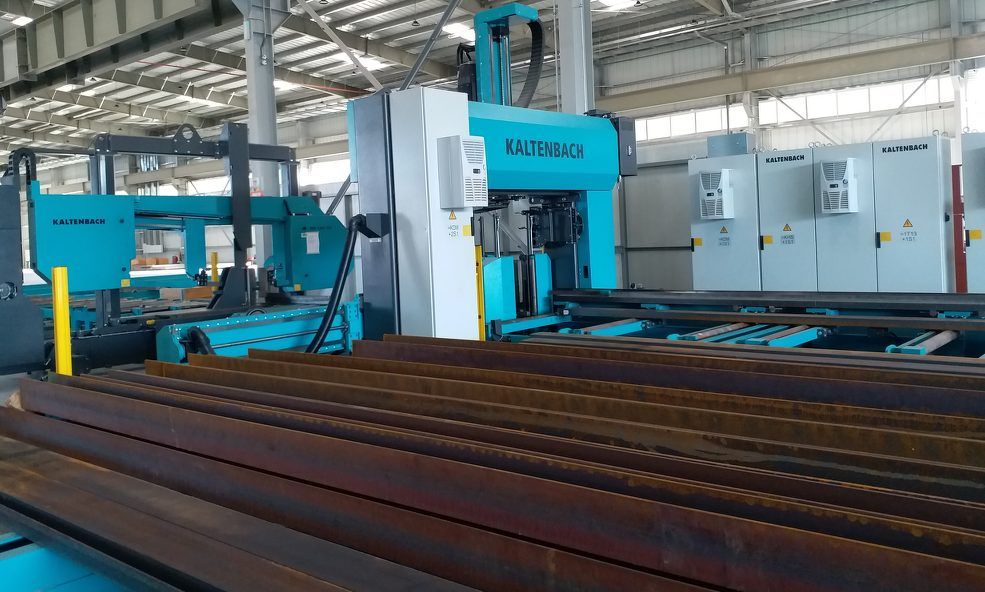

Beam Processing Line - Cutting and Drilling

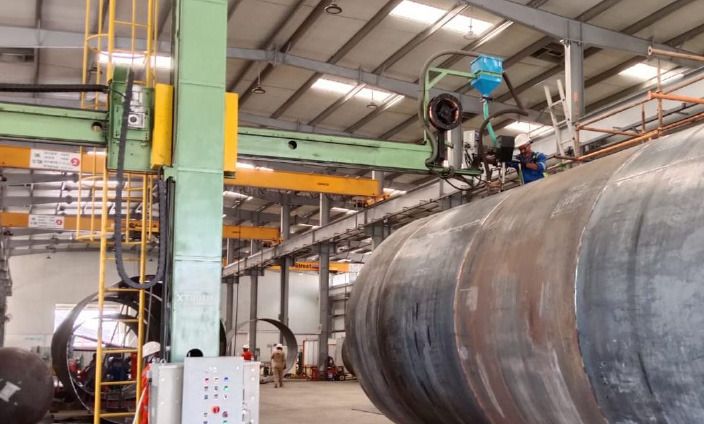

SAW Column & Boom - Semi Automatic Welding

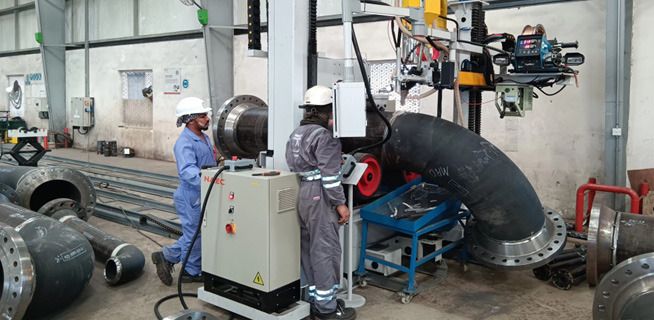

Pipe Welding Machine
